How to know app package and activities information without having apk | android app | Appium

How to know app package and activities information without having apk | android app | Appium

In Android app mobile automation,we need apk file of app but sometimes we have to perform action on inbuild app(pre installed) which come with device like call,sms etc.. for this we do not have apk file. Basically in android app automation we need app package information  and app activities. In case of apk it is easy to get above information with appium. But if we do not have apk and need the app package/activities information, we can use following command:

Precondition:

1. Android mobile must have developer option set to true.

2. ADB (Android debug bridge) must be configure

3. Android SDK installed.

Step1. Open then command terminal type adb devices and press enter

It will confirm that your device is connected and able to recognize by android sdk.

Step2: Now in mobile, open the app of which you want to get app pkg info/activities. In your mobile, it should be current activated app with focus. Means current window of your mobile should be app like calling/msg/your app window.

Step3: Now type adb shell and press enter to open the adb shell

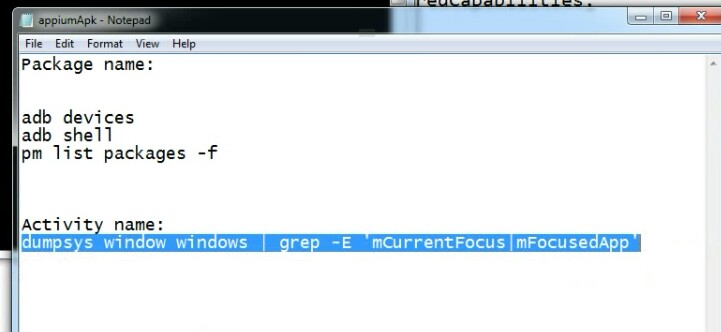

Step4: type dumpsys window windows | grep -E 'mCurrentFocus|mFocusedApp'  and press enter

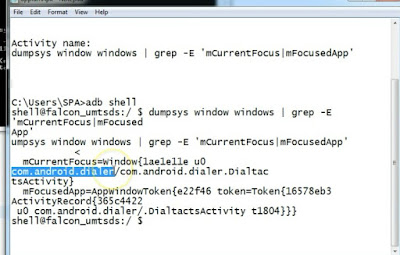

Above command will show the current activated app info of  your mobile. Now check the value of mCurrentFocus. First highlighted text is pkg info

Second highlighted text is app activities info

Here you can see that we can use this:

 Thanks

How to use ADB (Android Debug Bridge) over WiFi | Android automation

Whenever we work with Android mobile app automation we have to connect the device using USB cable. We can connect the device over Wi-Fi. To get rid of from the USB there is a super simple way! All you need is a USB cable (for the initial setup) and have both devices in the same network. This will work for non-rooted devices also.

Precondition:

• Your system and device must be in the same network.
• Android mobile must have developer option set to true.
• ADB (Android debug bridge) must be configure
• Android SDK installed.

Step 1. Attach mobile via USB

Step 2. Open then command terminal type adb devices and press enter

It will confirm that your device is connected and able to recognize by android sdk.

Step 3:   type:

adb tcpip 5555

Step 4:To find the mobile ip type:

adb shell ip -f inet addr show wlan0

Step 5: The ip address will be shown in second line like this:

inet 192.168.1.233/24 brd 192.168.1.255 scope global wlan0

where 192.168.1.233 is the ip address of your mobile.

Step 6:Remove USB cable and type:

   adb connect <mobile-ip>:5555

 like: adb connect <192.168.1.233>:5555

Note:

1. Make sure: that you do not have Android studio running before executing the - 'restart adb in tcpip mode' command
2. If you have IDE running then adb may have been already started and you may need to restart it in some cases: adb kill-server; adb start-server

Types of mobile Automation Tools

Automation tools for mobile application testing use one of two major technologies:

Object based tools : This approach is independent of screen size or resolution and provides a high degree of script reusability. This can be especially important for Android devices where variations in screen sizes and resolutions are widespread. Some object-based tools (e.g. Jamo Solutions) require changes to application source code while others (e.g. Robotium) do not require any source code changes.

Image based or bitmap based tools:
(such as Perfecto mobile and DeviceAnywhere) create automation
scripts based on screen coordinates of elements. For example, tapping a button on the screen is achieved
by tapping the coordinates (e.g. x=35, y=40). While this approach is agnostic to the type of application
(native, web, hybrid) and provides useful image matching capabilities, it typically requires jailbroken or
rooted devices and scripts to be re-written for each device with a different screen size or resolution (due
to change in coordinates). Jailbroken devices are typically incompatible with enterprise MDM security
policies and hence tools that rely on jailbroken devices may not be suitable for testing enterprise apps.

Automation tools for mobile application testing

Here are some automation tools which are well recognized for mobile
app automation:

•  Perfecto Mobile’s MobileCloud™Platform (plugs into QTP, supports Selenium)
• SeeTest Mobile Cloud (plugs into QTP, TestComplete, C#, RFT, Java,Perl, and Python).
• Keynote DeviceAnywhere
• Testdroid Cloud
• Jamo Solutions (plugs into QTP)
• SILK for Mobile
• FoneMonkey

and for many more, please visit
www.qatestingtools.com/mobile-testing-tools-table
Comparison of Mobile Automation Tools

SN	Logo	Name	Views (popular)	Since (maturity)
1		Android GUITAR	2,472	0
2		Android SDK	1,950	2009
3		App Test	605	2003
4		AppPerfect Web Test	705	2003
5		Cucumber	5,761	2008
6		eggPlant	7,621	2009
7		FoneMonkey	2,768
8		Forecast	1,007	2003
9		Frank	797	2011
10		Googletest	3,073	2008
11		IPhone Guitar	330
12		iPhone Simulator	285
13		iPhoneUnitTesting	354
15		KD Executor	334
16		Load Tester PRO	1,337	1999
17		M-eux Test	2,664	2008
18		mAutomate	844	2011
19		MobileCloud for QTP	875	0
20		MobileCloud-Automation	609	2006
21		MobileCloud-Interactive	1,294	2006
22		MonkeyTalk	2,368
23		MyVoIPSpeed PC	285	2007
24		NeoLoad	1,590	2005
25		Parasoft® Mobile Test	356
26		Ranorex Test Automation	3,391	2007
27		RealMobile	726	2006
28		Robolectric	934	2010
29		Robotium	2,636	2010
30		SandStorm	1,150	2011
31		SeeTestMobile	2,093	9999
32		Squish	76	2003
33		StressTester	499	2003
34		T-PLAN ROBOT	1,279
35		Test Center	1,379
36		Test Studio	855	2002
37		TestingBot	864	2011
38		TestQuest CountDown	920
39		Toolbox for Mac	349	2008
40		Tosca	4,588
41		Twist	1,733	0
43		ZAP-fix	529
